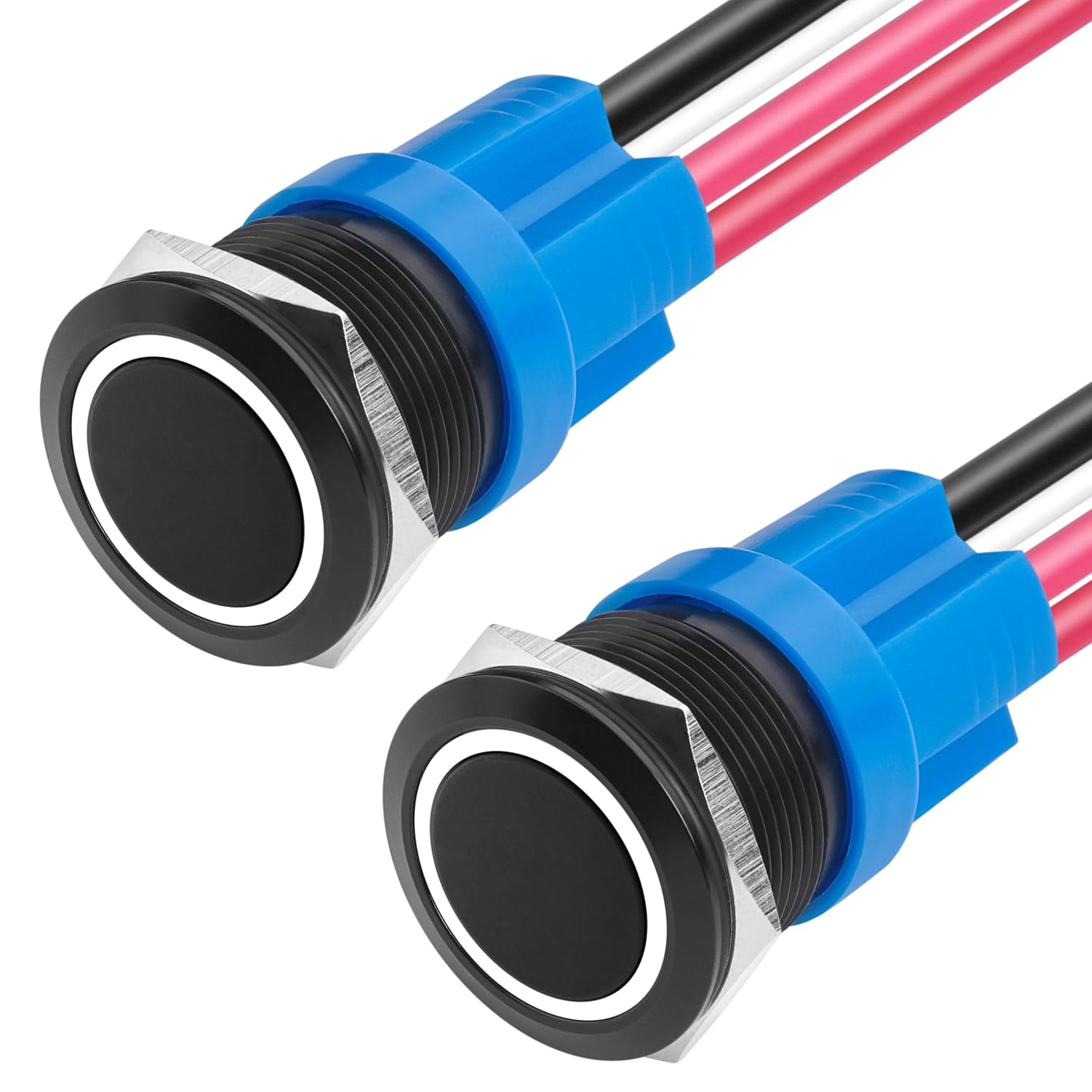

LED Latching Push Button Switch, Aluminum Alloy, IP67 Waterproof 5-24V 20A 1NO, with Wire Socket Plug (1, Green, 19mm)
Product details
| Management number | 247491468 | Release Date | 2026/08/16 | List Price | US$4.40 | Model Number | 247491468 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

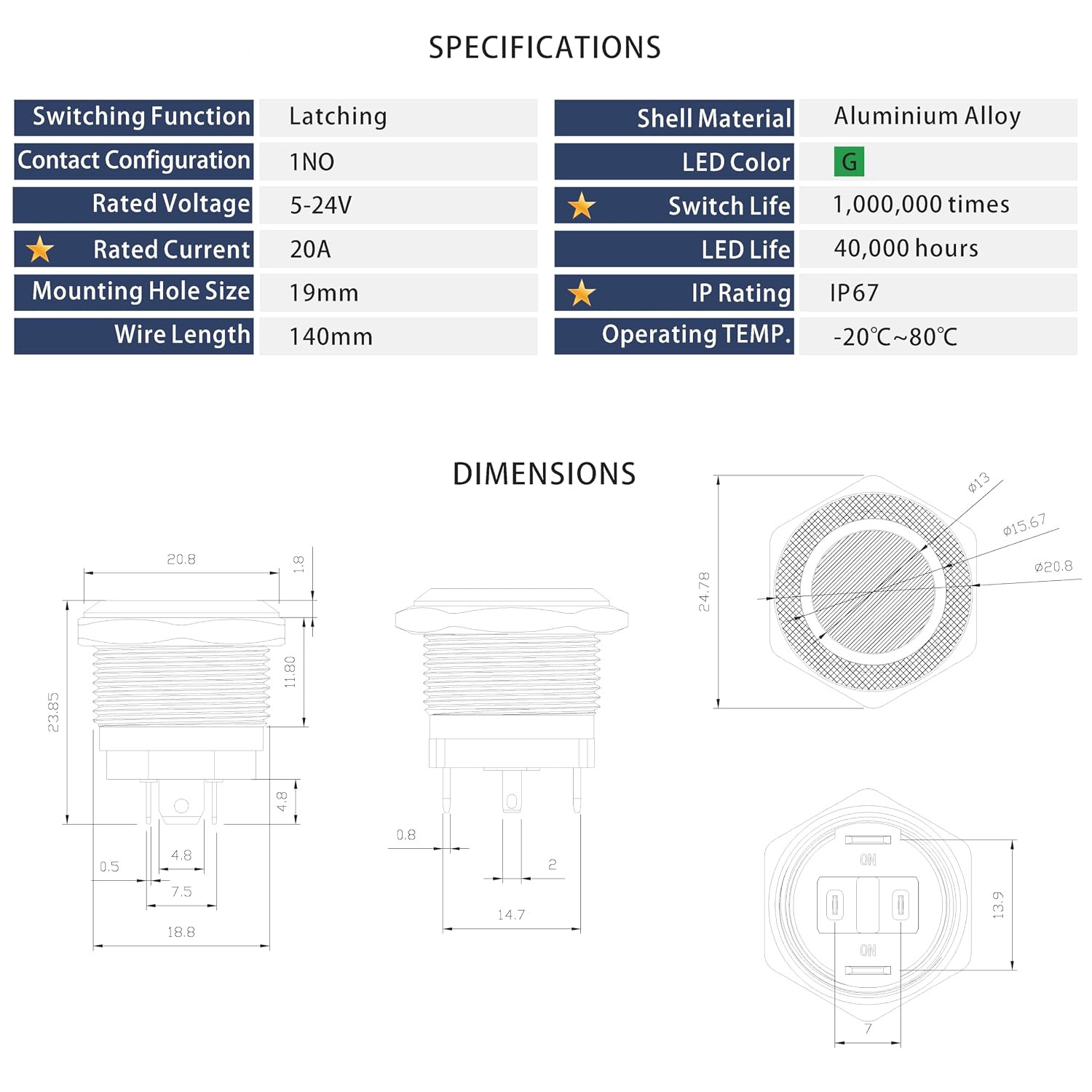

Switch Function: Latching Material: Aluminum Alloy, Plastic Contact Configuration: 1NO Maximum Rated Current: 20A Rated Voltage: 5-24V Illumination Color: Green IP Rating: IP67 Actuator Style: Flush Round Button Switch Life (Cycles): >1,000,000 times LED Life: >40,000 hours Operating Temperature: -20°C to +80°C Mounting: Panel Mount Panel Cut: ø19mm/0.75in
- Latching switch: push once, ON; push again, OFF
- Maximum 20A rated current, more equipments are available
- IP67 rated to endure harsh environments
- Suitable for Automotive, Boat building & Marine, Security, Door entry, Medical, Equipment Control, or any DIY applications
- Equipped with wiring socket to permit fast connection
| UPC | 710946092358 |
|---|---|
| ASIN | B0CQ5BFRFL |
| Color | Green |
| Wattage | 480 watts |
| Terminal | Screw |
| Brand Name | KWONONG |
| Unit Count | 1 Count |
| Part Number | KLLPBS16 |
| Switch Type | Push Button |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Control Type | ON-OFF |
| Manufacturer | Taizhou Jiaojiang Machine Tools Electric Appliances Factory |
| Actuator Type | Push Button |
| Material Type | Aluminum, Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Crimp, Plug In |
| Control Method | Push Button, Touch |
| Current Rating | 20 A |
| Operation Mode | ON-OFF |
| Controller Type | Push Button |
| Item Dimensions | 0.7 x 0.7 x 3.9 inches |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 12 volts |
| Specification Met | CE |
| Included Components | Switch body, Wire Socket Plug |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 80 °C |
| International Protection Rating | IP67 |
